Cal Spas Heaters
Cal Spas has used more than one 5.5 kW heater, and they look alike. Match the part number on your old heater’s label, not the photo. The XL flo-thru heaters (titanium or Incoloy) replace the older XL heat-exchanger heater. Balboa-pack and Waterway NEO heaters are separate assemblies.
Shop: Circuit Boards | Topside Controls | Circulation Pumps | Jet Pumps
More Cal Spas: Filters | Misc Parts | Pillows | All Cal Spas Parts
Resources: Cal Spas Resource Center | Balboa Heaters | All Hot Tub Heaters
Showing all 10 resultsSorted by price: high to low
-
Cal Spas Heaters

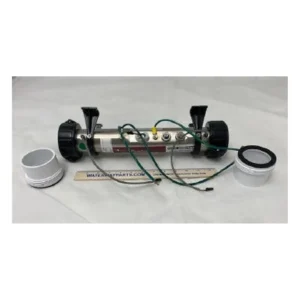

Waterway NEO 1500 Heater Assembly – 5.5 kW Titanium, Cal Spas (775-5005)
$420.99 Add to cart -
Cal Spas Heaters
Cal Spas XL 5.5 kW Flo-Thru Heater, 15 Inch, Titanium – Direct Replacement
$219.99 Add to cart -
Cal Spas Heaters
Cal Spas XL 5.5 kW Flo-Thru Heater, 15 Inch, Incoloy – Direct Replacement
$199.99 Add to cart -
Artesian Elite Heaters
Hot Tub Heater Element – 5.5 kW, 10″ – 115v/230v – Titanium – 25-4034-BI-TI
$49.97 Add to cart -
Artesian Elite Heaters
Hot Tub Heater Element – 5.5 kW, 10″ – 115v/230v – 25-4034-BI
$31.96 Add to cart
✅ Not Sure It Fits? Verify Before Ordering
Hot tub part compatibility can vary by spa brand, model, year, serial number, control system, and part revision.
To help us identify the correct replacement part, please send clear photos of:
- Your existing part label or sticker
- Your spa serial number sticker
- The equipment area or installation location (if accessible)
EZ Hot Tub Parts can help confirm fitment before you order and help reduce costly returns.
Which Cal Spas heater do you have?
Cal Spas builds spas on Balboa, Gecko and Waterway NEO control systems, often in the same year and series. So the year doesn’t tell you the heater. The label on the heater, or on the control box, does.
Replacing an old XL heat-exchanger heater? On the original Cal Spas XL heater, the element was wrapped around the outside of the housing. Both XL flo-thru replacements put a replaceable element inside a stainless tube and come with 2″ slip tailpieces and gaskets. Your old number decides the version: a TI number means titanium, a plain XL number means Incoloy. The titanium heater also replaces an Incoloy one if you’d rather upgrade.
XL heater parts: Pressure Switch | Pressure Switch Harness | 5.5 kW Replacement Element
No Heat? Work the Ladder Before You Buy
Heaters get blamed for problems they didn’t cause. Check these in order. 1. Filter. Pull it and run the spa without it. A clogged filter starves the heater of flow. 2. Breaker and GFCI. 3. Messages on the control panel. Flow, pressure-switch and “heater dry” messages point to flow, not the element. 4. Pressure switch, harness and sensors. They’re the small parts that tell the heater it’s safe to run. Only when flow is good and the spa still won’t heat does the heater assembly earn the blame.
A heater that trips the GFCI the moment it turns on usually has a shorted element. A heater that won’t turn on at all, with good flow, often has a bad pressure switch or a burnt pressure switch harness.
Swapping the Heater
Turn off the breaker, drain the spa or close the valves, and use new union gaskets. Move the pressure switch and sensors from the old heater, or replace them while it’s open. After refilling, bleed the air out of the pump and heater before turning the heat on. An air pocket can overheat a new heater on its first run.
Replacing a heater means draining down. It’s the right time for a fresh Cal Spas filter and water care before you refill. A dirty filter is hard on a brand-new element. Orders over $99 ship free in the lower 48.
Why is my Cal Spa not heating?
Start with the filter. A dirty filter restricts flow, and the spa shuts the heater down to protect it. Then check the breaker and GFCI, and read any message on the control panel. If flow is good and power is confirmed, the pressure switch, its harness, a temperature sensor or the heater element is next. Send photos through the form above and we’ll help pin it down.
How do I tell which Cal Spas heater I have?
Read the label on the heater or the control box. The XL 5.5 kW heater carries numbers like XL5.5, B24055XL, C2550-0011, F2550-0011 or HEA14100120 (Incoloy), or C2550-0011TI, HEA14100300 or HEA14100470 (titanium). A Waterway NEO 1500 heater is 775-5005. If the label is gone, send a photo of the heater and the control box label.
Should I choose titanium or Incoloy?
Both XL heaters are the same 5.5 kW, 230V, 2″ x 15″ assembly. Only the element metal differs. If your old heater is titanium, order titanium. If it’s Incoloy, either one works, since the titanium XL heater also replaces the Incoloy version.
What replaced the old Cal Spas XL heat exchanger?
The original XL heater had its element wrapped around the outside of the heater housing. The replacement is an in-line flo-thru heater with the element inside a 2″ x 15″ stainless tube, 2″ slip tailpieces and gaskets, a 1/8″ pressure switch tap and an auto-reset high limit. The element is replaceable on its own later.
Do I need a new pressure switch with a new heater?
Not always. The heater doesn’t include one, so most owners move the old switch over. If the switch is corroded, leaking or the reason the heater stopped, replace it at the same time, and check the harness spade connectors for burn marks. Both are small parts and the heater is already open.
Can I replace a Cal Spas heater myself?
Many owners do. It’s two unions and a few wires, but the wiring is 230V. Turn off the breaker first, and hire a qualified spa technician if you’re not comfortable working inside the control box.
