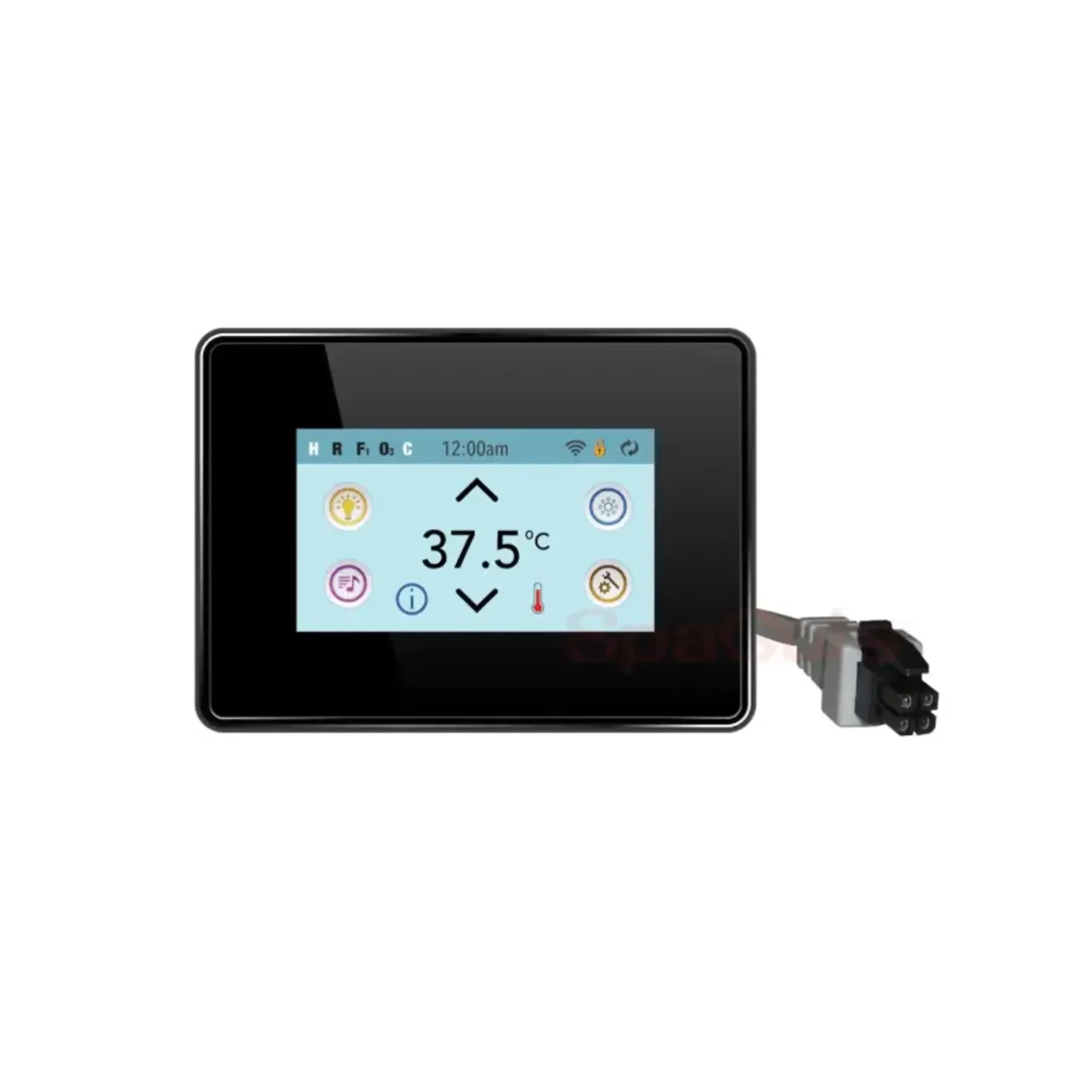

Balboa SpaTouch 2T-C touchscreen topside control clear frame - 34-57328-K - replaces 57179-01 34-57179-K

Balboa SpaTouch 2T-C Touchscreen Topside Control – Clear Frame

Original price was: $414.99.Current price is: $389.99.

Which Balboa Spa Pack Runs Your Spa?VS Series BP Series
Choose Your Topside Control — Balboa BP SeriesMeasure the panel face — the bezel size is what tells the ovals apart.
TP200 / TP240 / TP260 PanelsTP200T – 2 Pump TP200W – 1 Pump TP240T – 2 Pump TP240W – 1 Pump TP260T – 2 Pump TP260W – 1 Pump
TP600 / TP700 Panels6 Button – 3 Jets, Aux, Temp, Light 6 Button – Jets, Aux, Flip, Warm, Light, Cool 6 Button – Jets, Jets, Flip, Warm, Light, Cool TP500 – 6 Button TP500S – 6 Button TP540 – 6 Button (2 Pump) TP600 – 6 Button (Jets/Jets/Aux) TP700 – 2 Pump (9 Btn) TP700 – 3 Pump (10 Btn) TP700 – 4 Pump & Aux (11 Btn)
SpaTouch TouchscreensSpaTouch 2T – Black Frame SpaTouch 2T – Clear Frame SpaTouch 3 – 5-3/4″ SpaTouch 3+ – 7-1/4″ SpaTouch 4 – WiFi SpaTouch 4+ – WiFi SpaTouch Mini
Choose Your Spa PackBP7 – 4.0kW (Pack Only) BP7 – 4.0kW + TP600 BP7 – 5.5kW (Pack Only) BP7 – 5.5kW + TP600 BP100 – 4.0kW + TP200T BP100 – 4.0kW Remote + TP200T
Choose Your Circuit BoardBP7
Complete Your SystemWiFi: Not Available — Retrofit Options
Not sure which system you have? Match your spa pack label — VS, GS and BP boards use different topsides.
Balboa SpaTouch 2T-C Specs
  • Genuine Balboa touchscreen topside control
  • For compatible Balboa BP-series control systems
  • Replaces SpaTouch 1 and SpaTouch 2 panels when system and connector match
  • Complete touchscreen; no separate overlay required
  • Frame: Clear (the black-frame version is also available)
  • Panel size: 5-13/16″ x 4-1/4″
  • 4-pin Molex connector
- +
⭐⭐⭐⭐⭐ 4.9/5 Google Rating
Guaranteed Safe Checkout
Categories: , , ,

Balboa SpaTouch 2T-C Replacement Touchscreen — Clear Frame

Replace a failed or damaged Balboa SpaTouch 1 or SpaTouch 2 topside with this genuine Balboa SpaTouch 2T-C touchscreen control panel — the clear-frame version, with a 4-pin Molex connector for compatible Balboa BP-series spa control systems. Balboa lists it as the replacement for 57179-01 / 34-57179-K.

This is a complete touchscreen topside; no separate button overlay is required.

Prefer a black frame? The same panel is available as the SpaTouch 2T with a black frame — identical fitment and function, same price. Choose whichever suits your spa’s trim.

Installation

Turn off power to the spa at the GFCI or breaker before beginning. Remove the old topside, clean the mounting surface, open the equipment bay, and unplug the old topside cable from the control pack. Connect the new 4-pin Molex plug, position the new panel on a clean, dry surface with fresh double-sided adhesive as needed, then restore power and test the display.

If you are not comfortable working inside the equipment compartment, have a qualified spa technician install it.SpaTouch 2T-C ST2T-C 34-57328-K 57328 57179-01 34-57179-K spa touch II 2 clear frame BP series

Balboa SpaTouch 2T-C FAQs

Only the frame color. Both are the same SpaTouch 2T touchscreen with the same dimensions, connector, and functionality, and both are priced the same. Pick the frame that matches your spa’s topside trim.

No. It is made for compatible Balboa BP-series systems. Confirm your existing topside connector, control-pack model, and panel dimensions before ordering. It is not compatible with the older VS/GS systems, which use VL-series button panels.

No. The SpaTouch 2T-C is a complete touchscreen topside. Overlays are only used on button-style panels like the VL and TP series.

Send us a photo of your existing topside, its cable connector, and the label on your Balboa control pack. We will help confirm fitment before you order.

Need Help Confirming Fitment?

EZ Hot Tub Parts can help confirm fitment before you order and help reduce costly returns.
