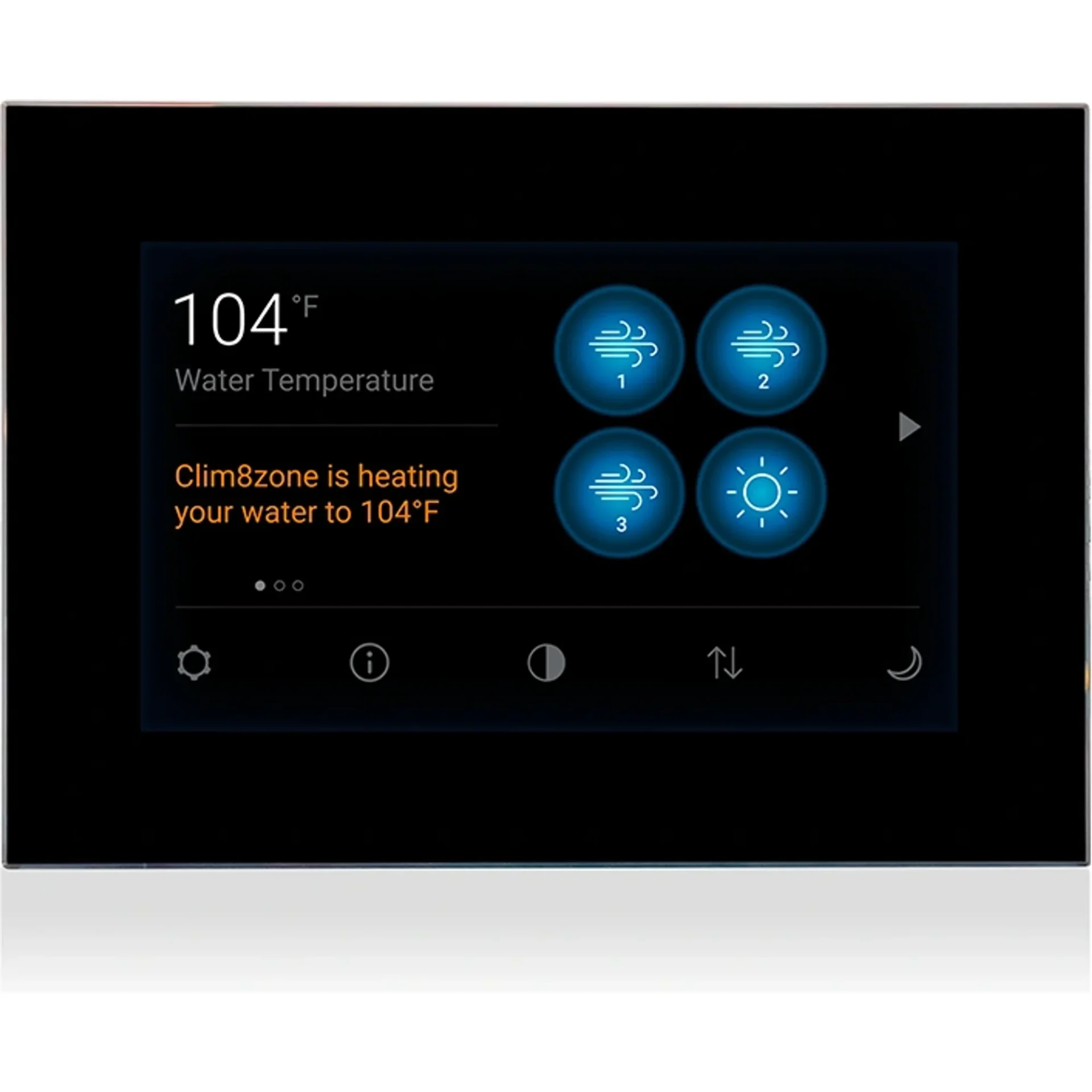

Balboa Spa Touch 4+ touchscreen topside control with built-in WiFi, 7.3 x 4.6 inch full-color display showing water temperature and jet controls, part 34-57562
4-Pin Molex style cord connector used by Balboa TP and SpaTouch series topside controls

Balboa Spa Touch 4+ Touchscreen with WiFi

$569.99

Which Balboa Spa Pack Runs Your Spa?VS Series BP Series
Choose Your Topside Control — Balboa BP SeriesMeasure the panel face — the bezel size is what tells the ovals apart.
TP200 / TP240 / TP260 PanelsTP200T – 2 Pump TP200W – 1 Pump TP240T – 2 Pump TP240W – 1 Pump TP260T – 2 Pump TP260W – 1 Pump
TP600 / TP700 Panels6 Button – 3 Jets, Aux, Temp, Light 6 Button – Jets, Aux, Flip, Warm, Light, Cool 6 Button – Jets, Jets, Flip, Warm, Light, Cool TP500 – 6 Button TP500S – 6 Button TP540 – 6 Button (2 Pump) TP600 – 6 Button (Jets/Jets/Aux) TP700 – 2 Pump (9 Btn) TP700 – 3 Pump (10 Btn) TP700 – 4 Pump & Aux (11 Btn)
SpaTouch TouchscreensSpaTouch 2T – Black Frame SpaTouch 2T – Clear Frame SpaTouch 3 – 5-3/4″ SpaTouch 3+ – 7-1/4″ SpaTouch 4 – WiFi SpaTouch 4+ – WiFi SpaTouch Mini
Choose Your Spa PackBP7 – 4.0kW (Pack Only) BP7 – 4.0kW + TP600 BP7 – 5.5kW (Pack Only) BP7 – 5.5kW + TP600 BP100 – 4.0kW + TP200T BP100 – 4.0kW Remote + TP200T
Choose Your Circuit BoardBP7 BP501G1 BP501G2 – Circ Pump BP501G3 – No Circ BP501U – Universal BP2000G1
Choose Your Heater AccessoriesGasket – 1-1/2″ Gasket – 2″ (2 Pack) Jumper Wires – 4″ Plug’n’Click Cable – Female Plug’n’Click Cable – Male Sensor – 30674 Stick-On Sensor – 32016 (24″ Dual) Sensor – 32016 Aftermarket
Complete Your SystemWiFi: Not Available — Retrofit Options
Not sure which system you have? Match your spa pack label — VS, GS and BP boards use different topsides.

Spa Touch 4+ – the 7.3 x 4.6 inch big-screen touchscreen with built-in WiFi for Balboa BP spa packs. Typically fitted to swim spas. 4-pin Molex, no overlay needed.

- +
⭐⭐⭐⭐⭐ 4.9/5 Google Rating
Guaranteed Safe Checkout
Categories: , , ,

🚚 How fast will this ship? 95% of Balboa, Gecko & Waterway parts ship within 2 business days.

Need it overnighted? Read this first

Balboa Spa Touch 4+ Touchscreen with WiFi

The big-screen Spa Touch 4: a 7.3 x 4.6 inch full-color capacitive touchscreen with built-in WiFi and ControlMySpa™ integration, for Balboa BP spa packs with the 4-pin Molex connector. The 4+ size is typically fitted to swim spas and large installs — the standard hot-tub panel is the Spa Touch 4 (5.75 inch).

You will need a CMS™ Code. A CMS™ Code is an 8 digit letter/number combination that all Spa owners must have to use spas equipped with the ControlMySpa™ system. Spa owners will need this CMS™ code to setup and connect their spas in the ControlMySpa™ database.
EzHotTubParts/MinnSpas Balboa CMS™ code: HGV-77246

Replaces

  • TP260T / TP260W, TP240T / TP240W, TP200T / TP200W
  • Spa Touch, Spa Touch 2, Spa Touch 3 (incl. 3+)
  • TP500, TP600, TP700, TP800, TP900

Linux-powered, ARM dual-core 800MHz, graphic-driven interface, no overlay needed.

✅ Not Sure It Fits? Verify Before Ordering

Balboa topside compatibility varies by spa pack model and connector — match your spa pack label (BP series, 4-pin Molex).

To help us identify the correct replacement, please send clear photos of:

  • Your current topside control panel (front)
  • Your spa pack / control system label
  • Your cable connector

EZ Hot Tub Parts can help confirm fitment before you order and help reduce costly returns.


Balboa BP spa packs with the 4-pin Molex topside connector. Match your spa pack label (BP or MBP), not the model year. We confirm the fit from a photo of your spa pack label before it ships.

Yes, for the WiFi features. The built-in WiFi registers through the ControlMySpa™ app using an 8-digit CMS™ code. Use ours: HGV-77246. Enter it during app setup and your spa connects — no separate WiFi module needed.

Screen size. The 4+ is the big-screen version, typically fitted to swim spas and large installs. The standard Spa Touch 4 is the 5-3/4″ hot-tub panel. Measure your existing panel and cutout before ordering.

TP260T / TP260W, TP240T / TP240W, TP200T / TP200W, Spa Touch, Spa Touch 2, Spa Touch 3 (including 3+), and the TP500, TP600, TP700, TP800 and TP900 — on a Balboa BP pack with the 4-pin Molex connector.

No — the touchscreen display replaces the printed overlay entirely. The panel arrives complete and ready to install.

Send us photos of your current topside, your spa pack label and your cable connector using the form above. We will confirm fitment before you order. Balboa part number 57562.
