Balboa VL402 topside control kit - 4 button Blower Light Jets Temp - 34-54093-K G8242 80-10668
Balboa VL402 topside overlay 80-10668 - Blower Light Jets Temp

Balboa VL402 Topside Control – 4 Button – Blower, Light, Jets, Temp

$169.99

Which Balboa Spa Pack Runs Your Spa?VS Series BP Series
Choose Your Topside Control — Balboa VS SeriesMeasure the panel face — the bezel size is what tells the ovals apart.
Small Bezel — 4-3/8″ × 1-5/8″ (VL200)4 Button – Blower, Jets, Temp, Light 4 Button – Jet, Jet, Temp, Light 4 Button – Jet, Light, Cool, Warm 3 Button – Jet, Temp, Light
Medium Bezel — 5-1/4″ × 1-15/16″ (VL240)4 Button – Blower, Jets, Temp, Light 4 Button – Jet, Light, Cool, Warm
Large Bezel — 7″ × 2-1/8″ (VL260)4 Button – Blower, Jets, Temp, Light 4 Button – Jet, Jet, Temp, Light 4 Button – Jet, Light, Cool, Warm 3 Button – Jet, Temp, Light
Rectangle Panels — VL400–VL404VL400 – Jets, Aux, Temp, Light VL401 – Jets, Jets, Temp, Light VL402 – Blower, Light, Jets, Temp VL403 – Jets, Jets, Temp, Light VL403 – Jets, Light, Cool, Warm VL404 – Temp, Blower, Jets, Light
Larger Panels — 7″ & UpVL406T – Jets, Jets, Light, Temp VL406U – Jets, Light, Warm, Cool VL600S – 6 Button VL701S – 7 Button
Choose Your Circuit BoardVS100 VS501Z
Choose Your Daughter BoardBlower / Pump 3 – 1-Speed
Choose Your Heater4.0kW 4.0kW Titanium 4.0kW – 1-1/2″ (VS100) 5.5kW 5.5kW Titanium
Complete Your SystemWiFi: Not Available — Retrofit Options
Not sure which system you have? Match your spa pack label — VS, GS and BP boards use different topsides.

Genuine Balboa VL402 topside control + overlay kit for Balboa VS & GS systems with a blower — large duplex rectangle, 7-5/16″ × 3-3/16″ · 4-button Blower · Light · Jets · Temp.

✔ Complete kit — overlay included   ✔ Fitment confirmed before it ships

What’s in the box: the genuine VL402 topside control and the Blower/Light/Jets/Temp overlay — one complete kit.

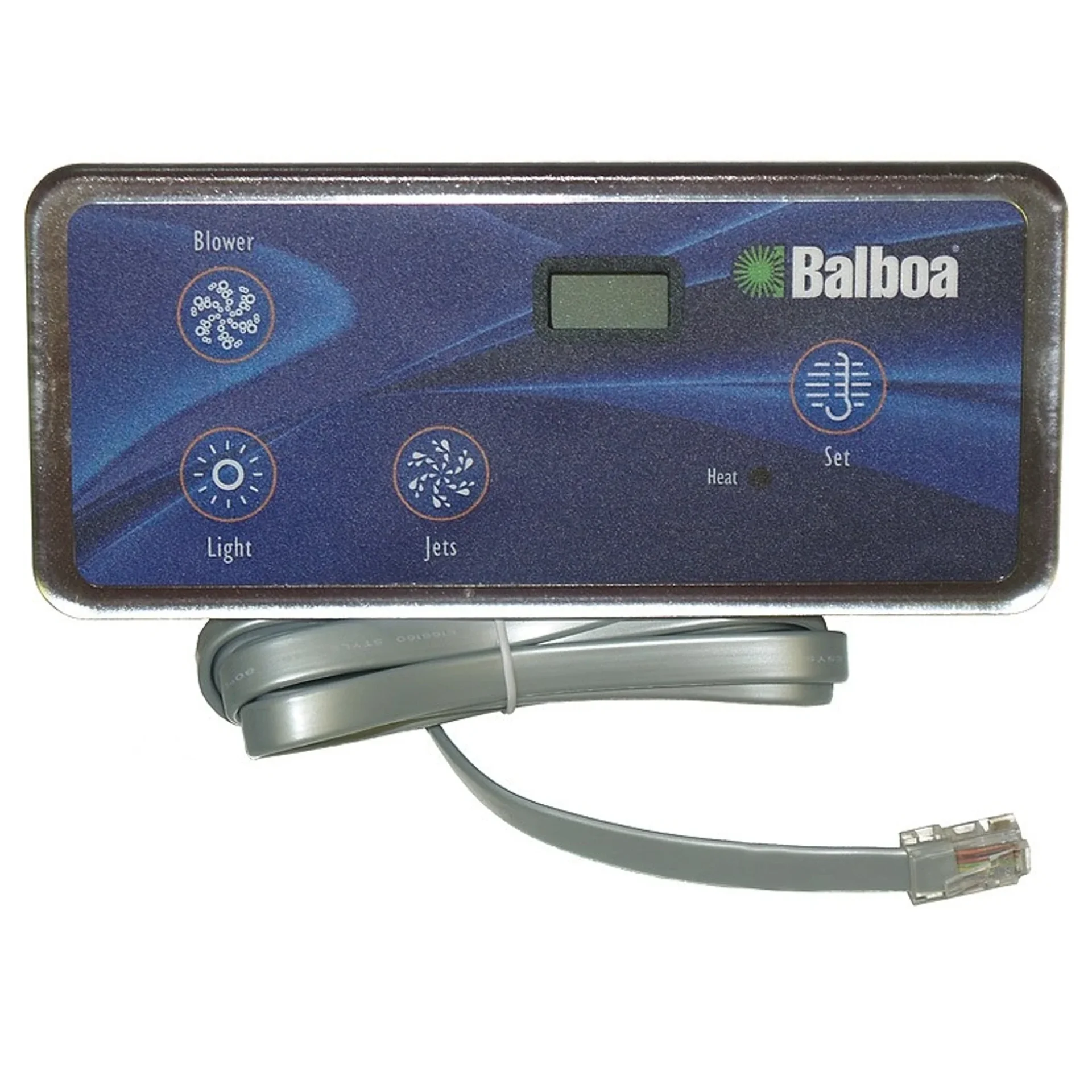

Balboa VL402 topside control G8242
VL402 topside control

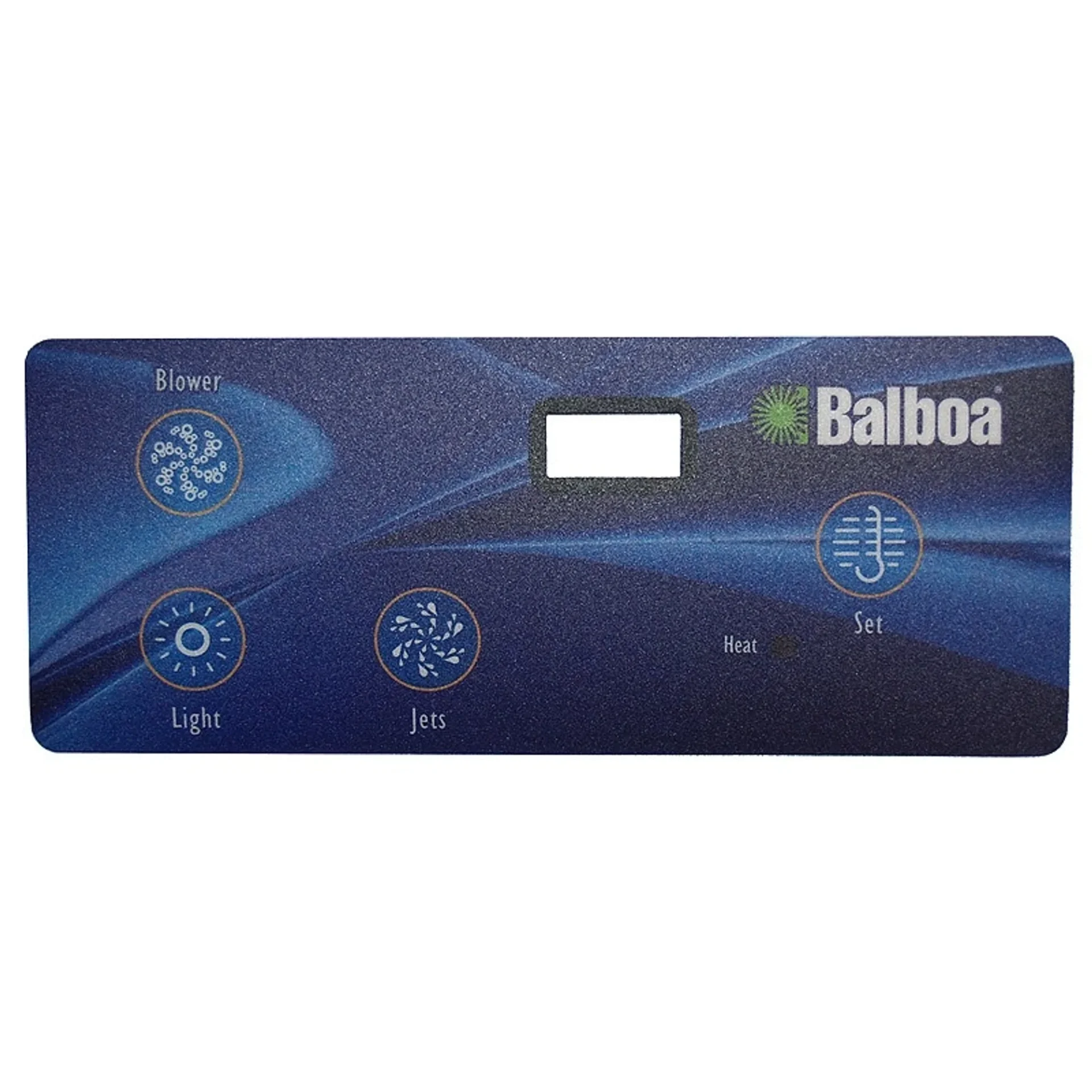

Balboa VL402 overlay 80-10668
Blower/Light/Jets/Temp overlay
- +
⭐⭐⭐⭐⭐ 4.9/5 Google Rating
Guaranteed Safe Checkout
Categories: , , ,

Genuine Balboa VL402 Topside Control Kit — 4 Button (Blower · Light · Jets · Temp)

This is the complete kit: the genuine Balboa VL402 large duplex rectangle topside control with the Blower / Light / Jets / Temp overlay (Balboa 80-10668) — the layout for Balboa VS and GS series spas equipped with an air blower.

How to know this is your panel

The VL402 is the larger duplex rectangle measuring 7-5/16″ × 3-3/16″ — noticeably taller than the VL401/VL403 panels (2-3/16″). The VL404 shares these dimensions, so match your button labels too: this kit reads Blower, Light, Jets, Temp. Not sure? Send us a photo and we’ll confirm before it ships.VL402 VL-402 34-54093-K 54093 34-54100-K 54100 G8242 G-8242 58-138-3420 80-10668 10668 80-10721 10721 duplex blower

What’s in the box

The genuine Balboa VL402 topside control and the 4-button Blower/Light/Jets/Temp overlay — one complete kit, nothing else to hunt down.

Easy to install: with the spa powered off, unplug the old panel from the circuit board, plug in the new one, and apply the overlay with its adhesive backing. Only the printed overlay worn? Order the VL402 overlay by itself.

*Manufacturer reserves the right to make production changes in color and overlay design. Actual product received may vary slightly but the functionality remains the same.
