Balboa VL240 topside control kit - 4 button Blower Jets Temp Light - Medium Bezel - 34-53565-K G8224 80-11520
Balboa VL240 topside overlay 80-11520 - Blower Jets Temp Light

Balboa Topside Control – 4 Button – Blower, Jets, Temp, Light – Medium Bezel (VL240)

$169.99

Which Balboa Spa Pack Runs Your Spa?VS Series BP Series
Choose Your Topside Control — Balboa VS SeriesMeasure the panel face — the bezel size is what tells the ovals apart.
Small Bezel — 4-3/8″ × 1-5/8″ (VL200)4 Button – Blower, Jets, Temp, Light 4 Button – Jet, Jet, Temp, Light 4 Button – Jet, Light, Cool, Warm 3 Button – Jet, Temp, Light
Medium Bezel — 5-1/4″ × 1-15/16″ (VL240)4 Button – Blower, Jets, Temp, Light 4 Button – Jet, Light, Cool, Warm
Large Bezel — 7″ × 2-1/8″ (VL260)4 Button – Blower, Jets, Temp, Light 4 Button – Jet, Jet, Temp, Light 4 Button – Jet, Light, Cool, Warm 3 Button – Jet, Temp, Light
Rectangle Panels — VL400–VL404VL400 – Jets, Aux, Temp, Light VL401 – Jets, Jets, Temp, Light VL402 – Blower, Light, Jets, Temp VL403 – Jets, Jets, Temp, Light VL403 – Jets, Light, Cool, Warm VL404 – Temp, Blower, Jets, Light
Larger Panels — 7″ & UpVL406T – Jets, Jets, Light, Temp VL406U – Jets, Light, Warm, Cool VL600S – 6 Button VL701S – 7 Button
Choose Your Circuit BoardVS100 VS501Z
Choose Your Daughter BoardBlower / Pump 3 – 1-Speed
Choose Your Heater4.0kW 4.0kW Titanium 4.0kW – 1-1/2″ (VS100) 5.5kW 5.5kW Titanium
Complete Your SystemWiFi: Not Available — Retrofit Options
Not sure which system you have? Match your spa pack label — VS, GS and BP boards use different topsides.

Genuine Balboa VL240 topside control + overlay kit for Balboa VS & GS systems with a blower. Medium Bezel — 5-1/4″ × 1-15/16″ · 4-button Blower · Jets · Temp · Light · LCD.

✔ Complete kit — overlay included   ✔ Fitment confirmed before it ships

What’s in the box: the genuine VL240 topside control and the Blower/Jets/Temp/Light overlay — one complete kit.

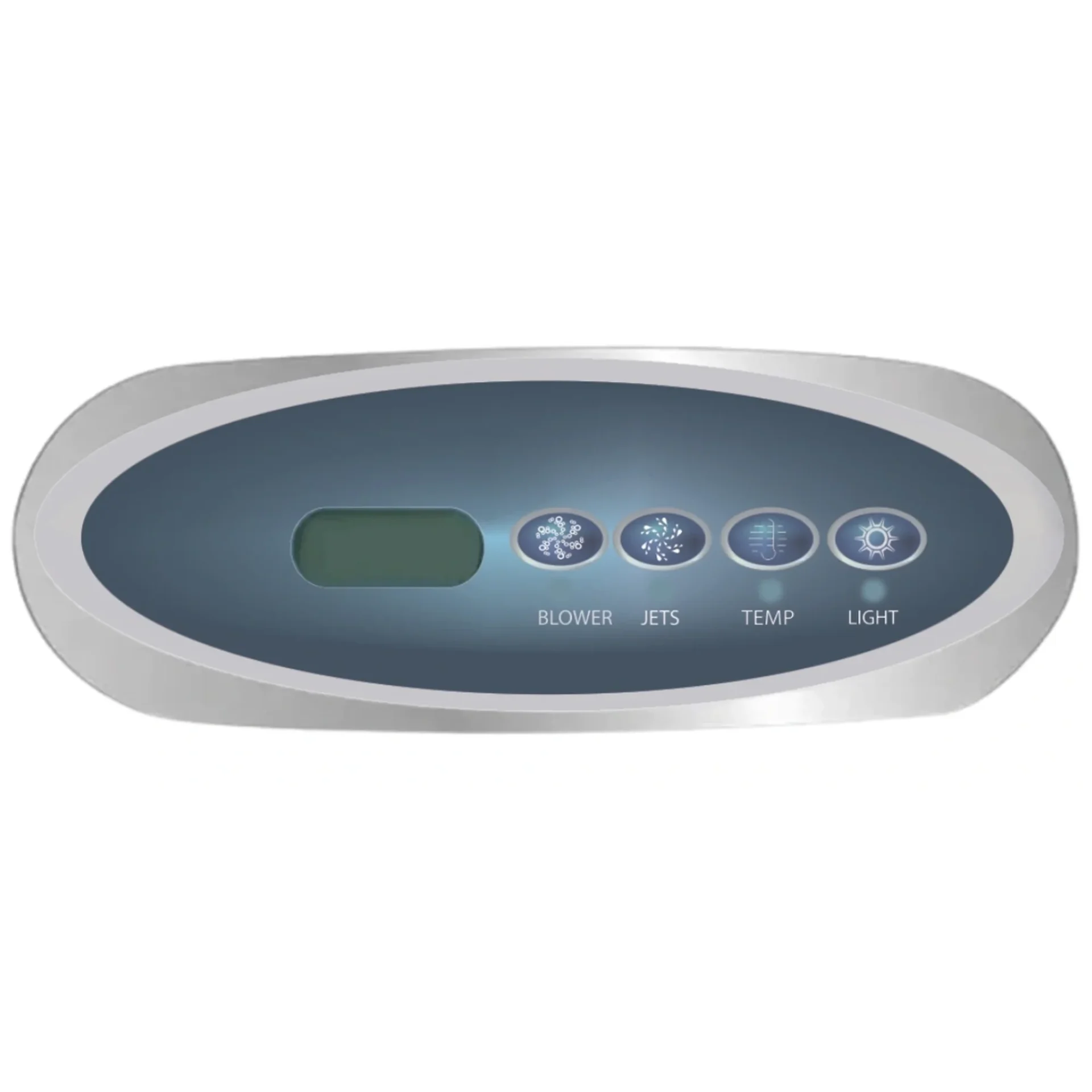

Balboa VL240 blower topside control kit
VL240 topside control

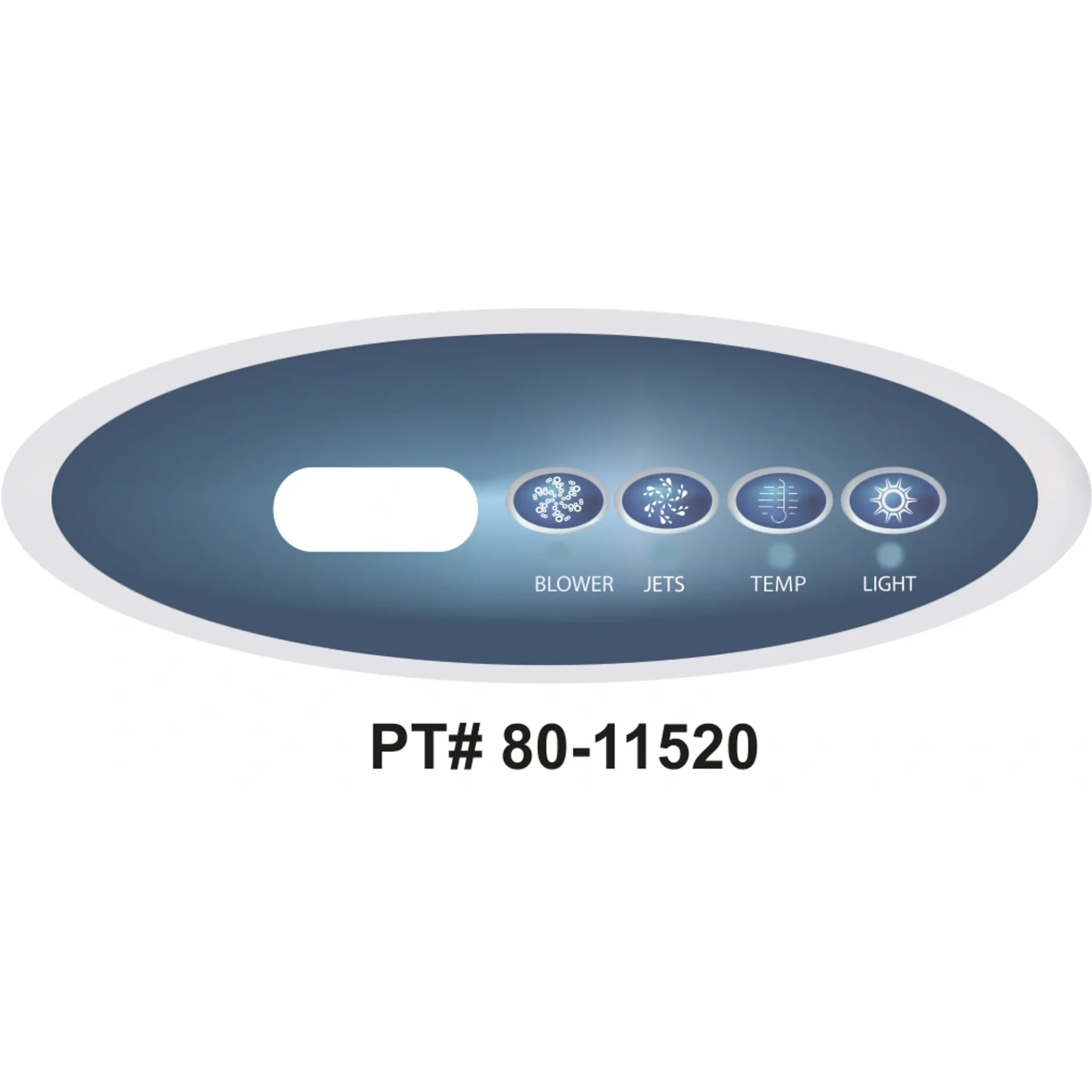

Balboa VL240 overlay 80-11520
Blower/Jets/Temp/Light overlay
- +
⭐⭐⭐⭐⭐ 4.9/5 Google Rating
Guaranteed Safe Checkout
Categories: , , ,

Genuine Balboa VL240 Topside Control Kit — 4 Button (Blower · Jets · Temp · Light)

This is the complete kit: the genuine Balboa VL240 duplex LCD oval topside control with the Blower / Jets / Temp / Light overlay (Balboa 80-11520) — the layout for Balboa VS and GS series spas equipped with an air blower.

How to know this is your panel

The VL240 is the Medium Bezel: the panel face measures 5-1/4″ × 1-15/16″. Smaller is the VL200 (4-3/8″), larger the VL260 (7″). Then match the buttons: Blower, Jets, Temp, Light. Not sure? Send us a photo and we’ll confirm before it ships.VL240 VL-240 MVP240 34-53565-K 53565 34-53643-K 53643 G8224 G-8224 58-138-3412 80-11520 11520 blower

What’s in the box

The genuine Balboa VL240 topside control and the 4-button Blower/Jets/Temp/Light overlay — one complete kit, nothing else to hunt down.

Easy to install: with the spa powered off, unplug the old panel from the circuit board, plug in the new one, and apply the overlay with its adhesive backing. Only the printed overlay worn? Order the VL240 blower overlay by itself.

*Manufacturer reserves the right to make production changes in color and overlay design. Actual product received may vary slightly but the functionality remains the same.
