American Select Spas Topside Control — TP600, 2 Pump with Stereo
This is the branded replacement, not a generic substitute: the genuine American Select Spas printed overlay applied to a genuine Balboa TP600 LCD topside panel. Your spa looks the way it did the day it was delivered, with the same Pump 1 / Pump 2 and Temp / Light / Stereo buttons in the same places.
How to know this is your panel

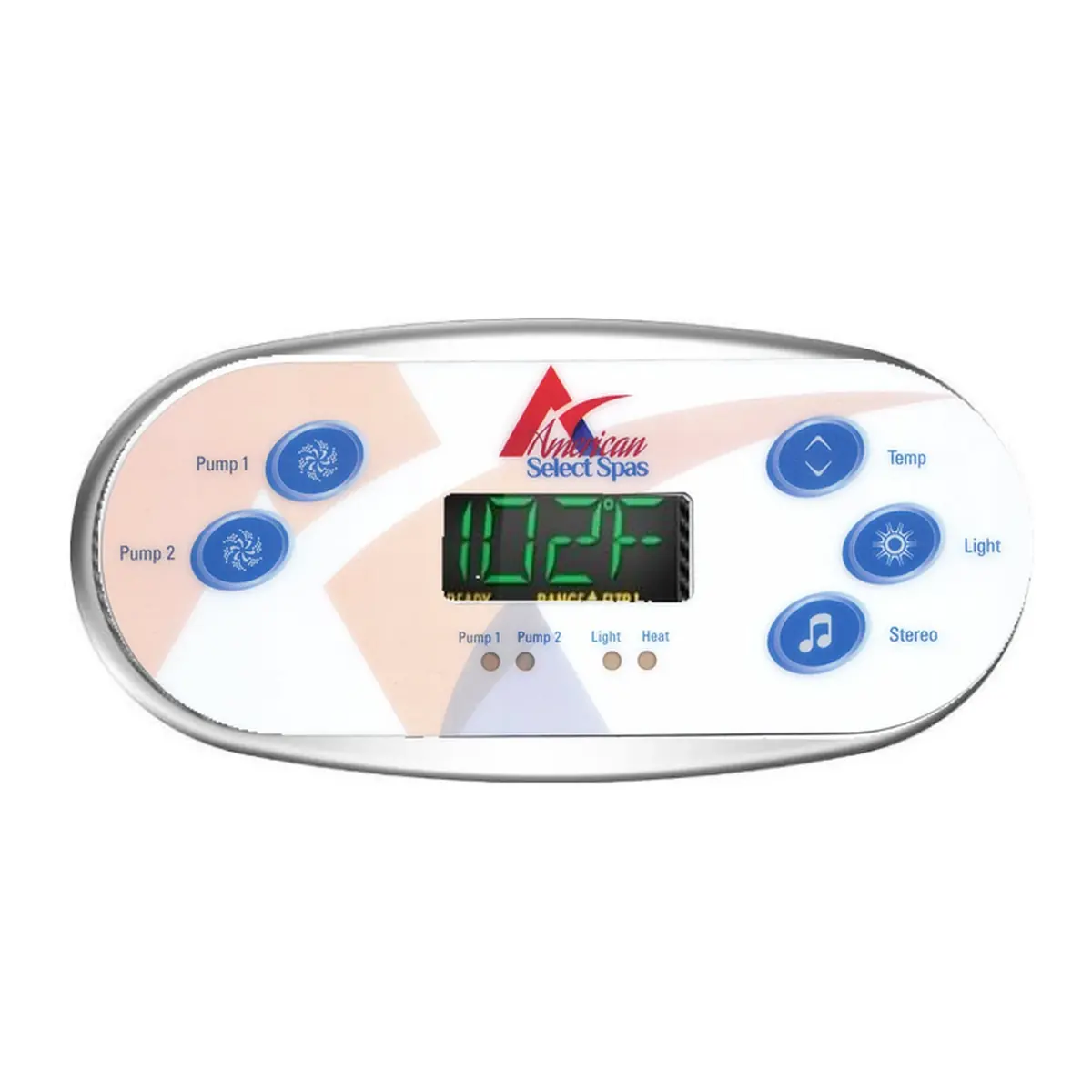

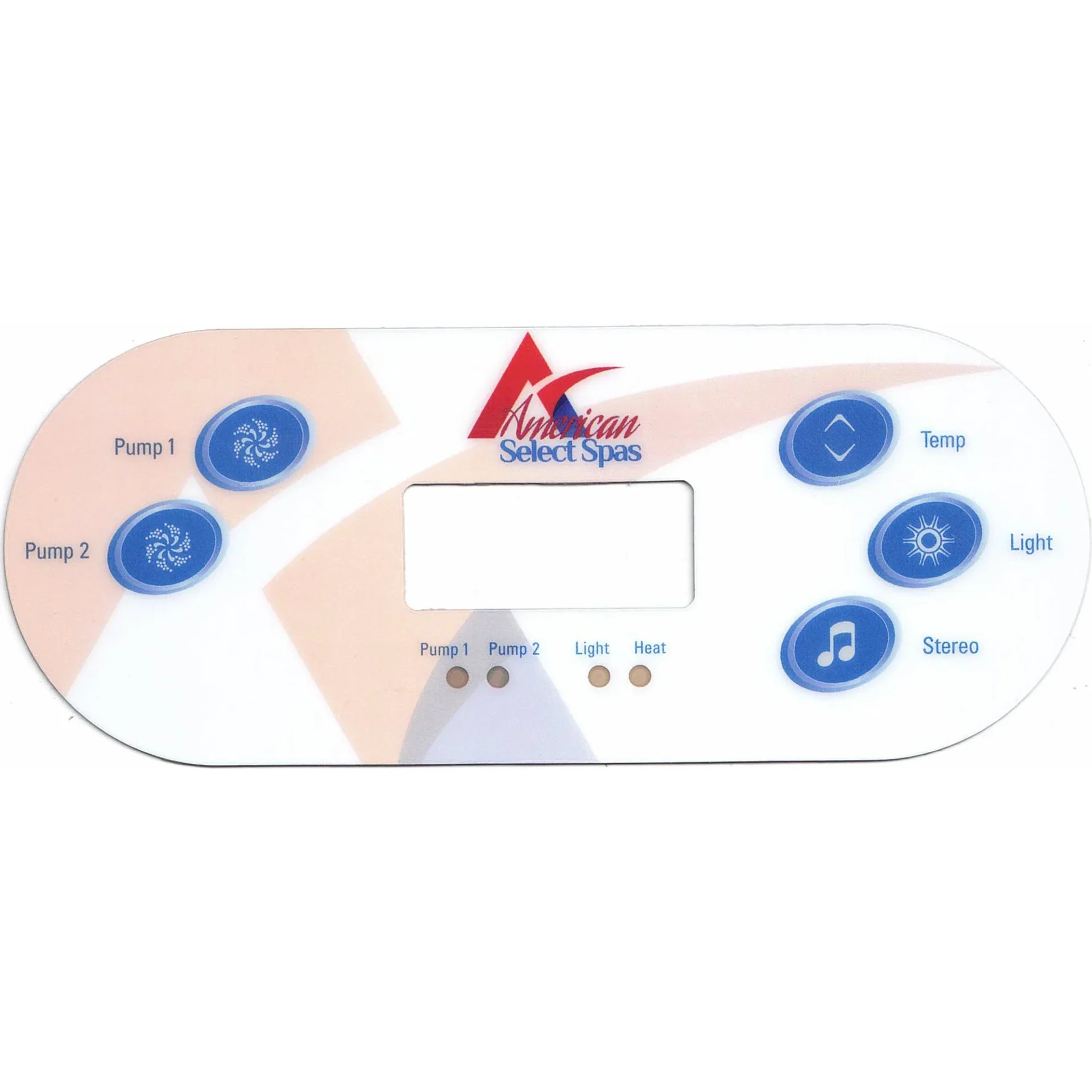

Your panel is the long oval TP600 with an LCD window and the American Select Spas logo across the top. This is the two-pump with Stereo version — two jet buttons down the left, and Temp, Light and a music-note Stereo button down the right. If your panel has a third pump button and no Stereo, you want the 3-pump version instead.American Select Spas topside control TP600 2 pump stereo 440-0109 33-1503-08 LPI Aqua Living balboa BP overlay Pump 1 Pump 2 Temp Light Stereo
About the Stereo button
On a Balboa BP system the stereo is driven by the spa’s auxiliary output. Your circuit board decides what that button switches — the topside just reports the press. That is why a correctly matched overlay and panel behave exactly like your original, stereo included.
Why a branded panel and not a generic one
A generic Balboa overlay will run the spa, but the buttons read “Jets” and “Aux” instead of “Pump” and “Stereo”, and there is no American Select logo — it always looks like a repair. This one doesn’t.
What’s in the box
part 440-0109
4-pin Molex cord
The Balboa TP600 topside control with the American Select Spas 2-pump/Stereo overlay applied — one complete, ready-to-install panel. Sold as a complete topside only; we do not sell these branded overlays separately.
Easy to install: with the spa powered off, unplug the old panel from the circuit board, plug the new one in, seat it on a clean dry surface, and restore power.
*Manufacturer reserves the right to make mid-production changes that do not materially affect how the part functions. Artwork, colour shade and finish may vary slightly from the image shown. If a part doesn’t work, we’ll make it right — if it works but the graphics differ slightly from the photo, that’s normal in this industry.
✅ Not Sure It Fits? Verify Before Ordering
Send clear photos of your current topside control (front, showing the buttons and logo), the cable connector behind it, and your spa pack label. We’ll confirm the right overlay and panel before you order.
It uses the genuine American Select Spas printed overlay on a genuine Balboa TP600 topside panel — the same two components your spa was built with. We assemble it here so it arrives as one finished panel.
Yes, provided your spa was built with the stereo option. The button sends its press to the circuit board, and the board switches the auxiliary output the stereo runs on. Replacing the topside does not change that wiring.
No. Order the 3-pump American Select version, which has Pump 1, Pump 2 and Pump 3 with Temp and Light.
Not on its own. We sell these branded panels as complete topside controls so you get a finished part rather than a sticker that may not sit right on a worn panel.
For most owners, yes. Shut the power off at the breaker, unplug the old topside from the circuit board, connect the new one, mount it, then restore power. No special tools required. If you are not comfortable working inside the equipment compartment, have a spa technician handle it.
