Tuff Spas Topside Control — 5 Button, 2 Pump

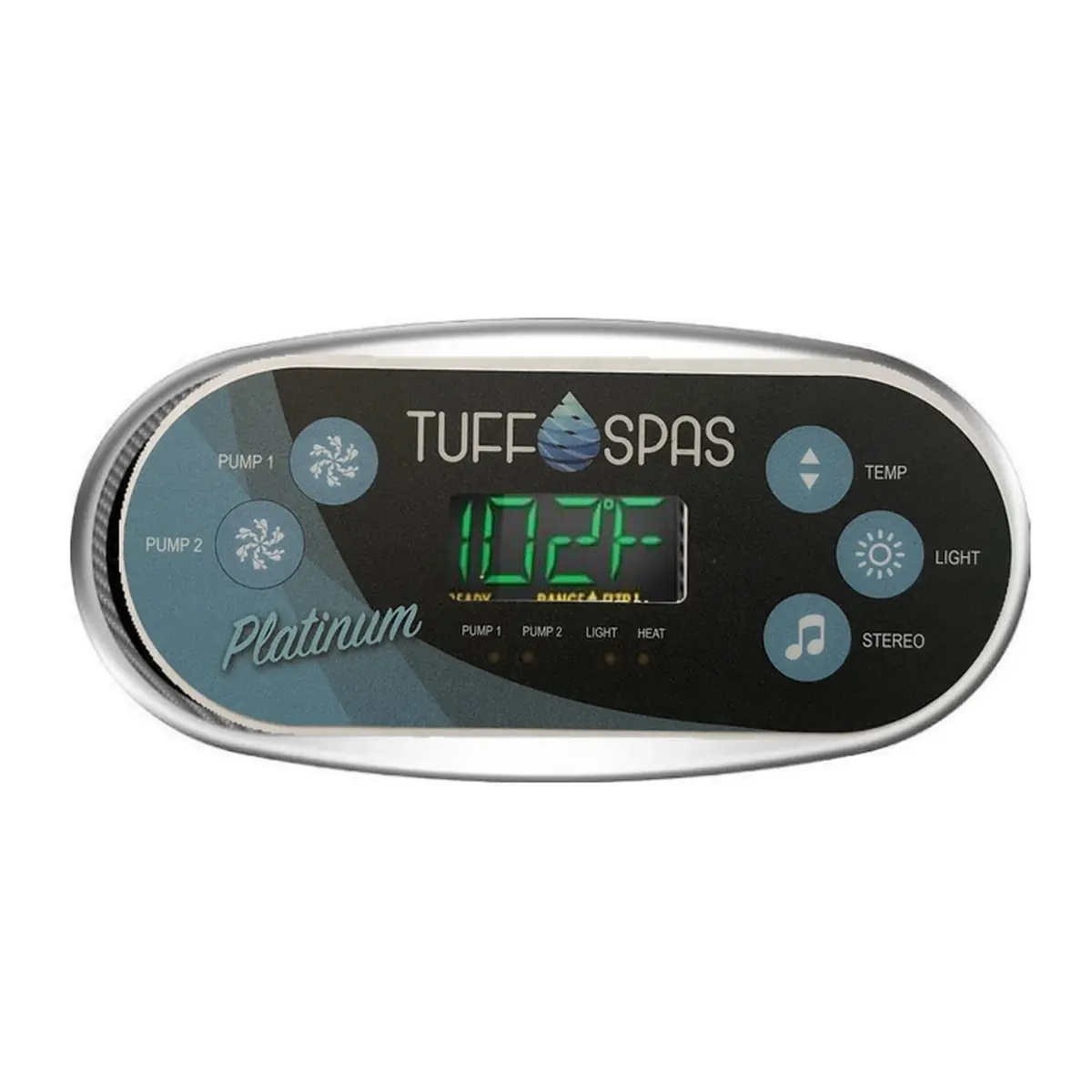

This is the branded replacement, not a generic substitute: the genuine Tuff Spas printed overlay applied to a genuine Balboa TP600 LCD topside panel. Your spa looks the way it did the day it was delivered, with the same Pump 1 / Pump 2 and Temp / Light / Stereo buttons in the same places.
How to know this is your panel

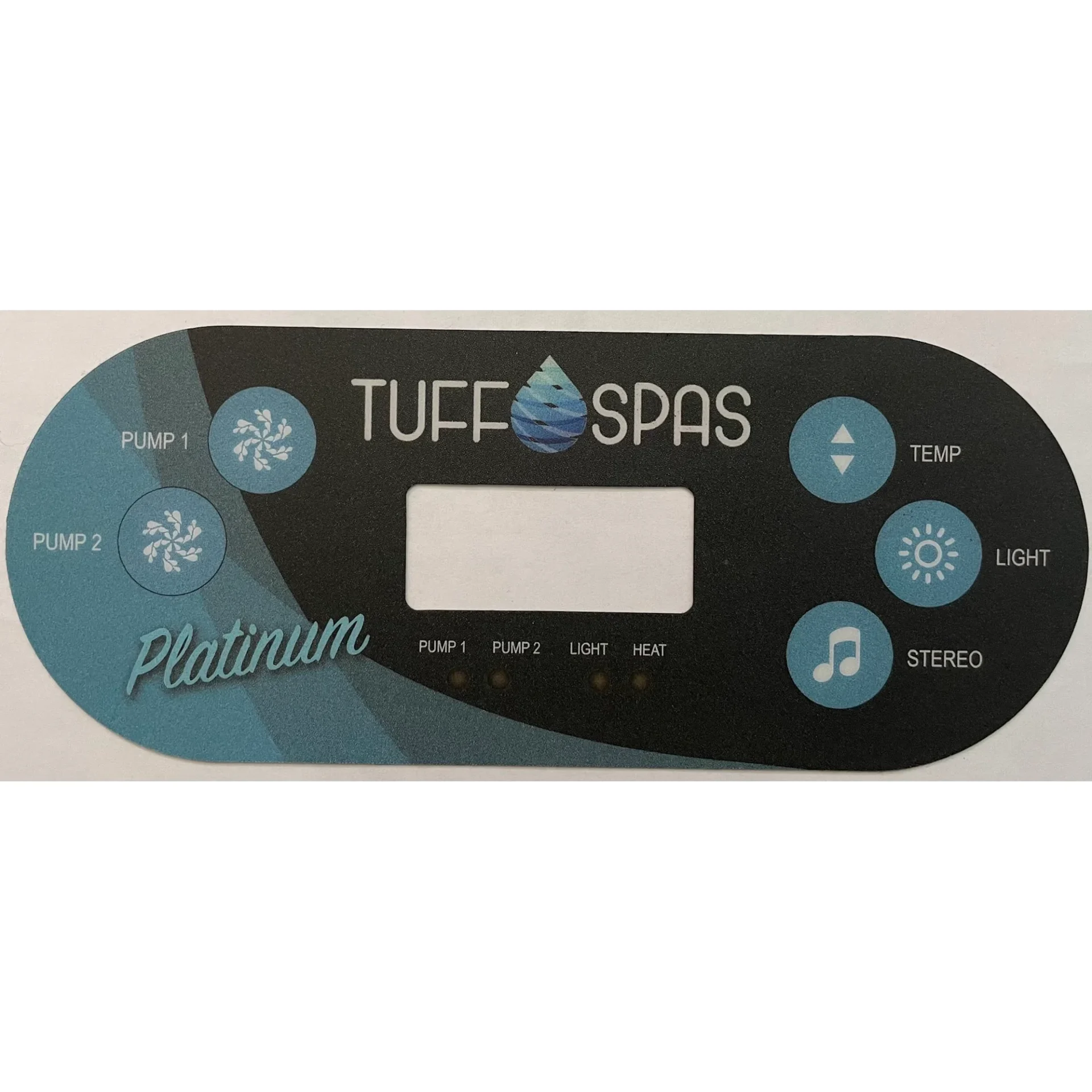

Your panel is the long oval with an LCD window and the Tuff Spas water-drop logo across the top. This overlay carries the Platinum script on the lower left. Count five buttons: two jet buttons down the left, and Temp, Light and a music-note Stereo button down the right.
Not sure your Tuff is a Platinum? Send us a photo — Tuff used several panel families across its model lines, and the overlay artwork is the quickest way to confirm which one you have.Tuff Spas Platinum topside control TP600 2 pump stereo 17410 33-1503-08 LPI Aqua Living Catalina balboa BP overlay Pump 1 Pump 2 Temp Light Stereo 5 button
About the Stereo button
On a Balboa BP system the stereo runs off the spa’s auxiliary output. Your circuit board decides what that button switches — the topside just reports the press. That is why a correctly matched overlay and panel behave exactly like your original, stereo included.
Why a branded panel and not a generic one
A generic Balboa overlay will run the spa, but the buttons read “Jets” and “Aux” instead of “Pump” and “Stereo”, and there is no Tuff Spas logo — it always looks like a repair. This one doesn’t.
What’s in the box
part 17410
4-pin Molex cord
The Balboa TP600 topside control with the Tuff Spas 2-pump overlay applied — one complete, ready-to-install panel. Sold as a complete topside only; we do not sell these branded overlays separately.
Easy to install: with the spa powered off, unplug the old panel from the circuit board, plug the new one in, seat it on a clean dry surface, and restore power.
*Manufacturer reserves the right to make mid-production changes that do not materially affect how the part functions. Artwork, colour shade and finish may vary slightly from the image shown. If a part doesn’t work, we’ll make it right — if it works but the graphics differ slightly from the photo, that’s normal in this industry.
✅ Not Sure It Fits? Verify Before Ordering
Send clear photos of your current topside control (front, showing the buttons and logo), the cable connector behind it, and your spa pack label. We’ll confirm the right overlay and panel before you order.
It uses the genuine Tuff Spas printed overlay on a genuine Balboa TP600 topside panel — the same two components your spa was built with. We assemble it here so it arrives as one finished panel.
Possibly, but check first. This is the Platinum-branded 2-pump overlay, and Tuff used several panel families across its model lines. Send us a photo of your current panel and we’ll confirm before you order.
Yes, provided your spa was built with the stereo option. The button sends its press to the circuit board, and the board switches the auxiliary output the stereo runs on. Replacing the topside does not change that wiring.
Not on its own. We sell these branded panels as complete topside controls so you get a finished part rather than a sticker that may not sit right on a worn panel.
For most owners, yes. Shut the power off at the breaker, unplug the old topside from the circuit board, connect the new one, mount it, then restore power. No special tools required. If you are not comfortable working inside the equipment compartment, have a spa technician handle it.
