Dynasty Spas Circulation Pump – Gecko Maelstrom CMS-1
Replacement circulation pump for Dynasty Spas hot tubs — the genuine Gecko Maelstrom 24-hour circ pump — Gecko part number 0810-690000. It replaces the factory Maelstrom circ 0810-600000 (model CMS-1-V256-0.2-1) used by Dynasty Spas and other spas with Gecko controls.
Match your label: Maelstrom series, model CMS-1, 220–240V, 0.20 HP output (0.30 HP input), 1 amp (FLA 1A), 50/60 Hz.
Specifications
- Accessory Pump Type: Circulation
- Pump Model: Maelstrom CMS-1
- Speed: 1 Speed (1-Spd)
- Motor Voltage: 230v
- Suction Style: Center
- Suction Pipe Size: 1-1/2″
- Discharge Style: Side
- Discharge Pipe Size: 1-1/2″
- Horsepower: 0.2hp
- Motor Amperage/Wattage: 1.0A (FLA 1A)
- Input / output power: 0.30 HP in / 0.20 HP out
- Frequency: 50 or 60 Hz
- Max flow / head: about 320 L/min (84 GPM), 3.8 m (12.5 ft)

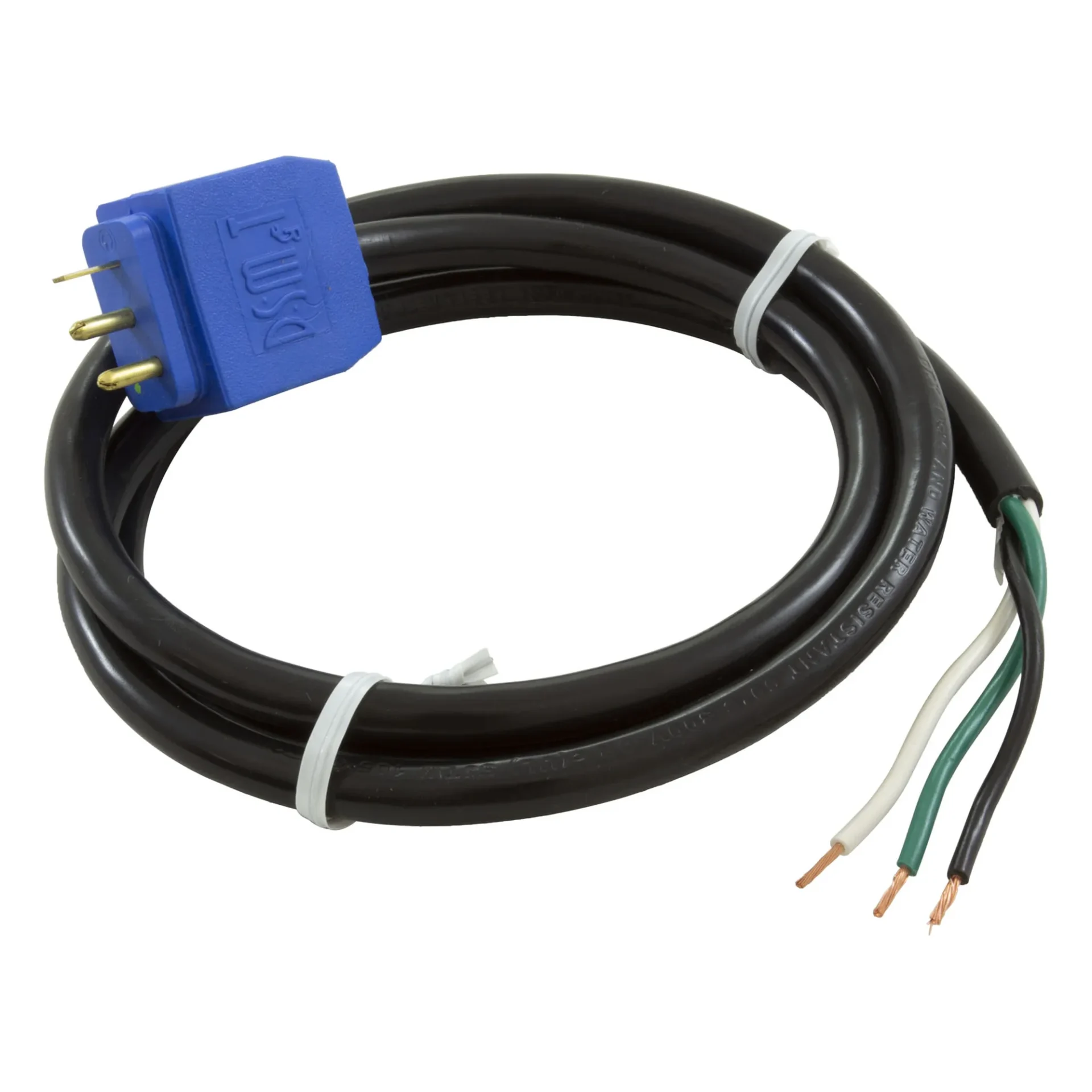

- Cord: 96″
- Replaces: Gecko 0810-600000 (CMS-1-V256-0.2-1)
*Manufacturer reserves the right to make production changes. Actual product received may vary slightly in appearance but the function remains the same.
✅ Not Sure It Fits? Verify Before Ordering
Hot tub part compatibility can vary by spa brand, model, year, serial number, control system, and part revision.
To help us identify the correct replacement part, please send clear photos of:
- Your existing part label or sticker
- Your spa serial number sticker
- The equipment area or installation location (if accessible)
EZ Hot Tub Parts can help confirm fitment before you order and help reduce costly returns.
Helpful photos: serial number sticker, equipment labels, full equipment view, and any damaged or leaking parts.
Dynasty installs the Gecko Maelstrom CMS-1 circ (0810-600000) on recent models. If your old pump label says Maelstrom, model CMS-1, part 0810-600000 or 0810-690000, this is the replacement. If you cannot find it, send us photos through the fit-check form above and we will confirm before you order.
Match horsepower, voltage, speed, motor frame and the suction/discharge size and style. This pump: 0.2hp 230v, 1 Speed (1-Spd),, 1-1/2″ suction / 1-1/2″ discharge (Side discharge).
Orders ship from our parts warehouse partners, and orders over $99 ship free in the lower 48. Need it confirmed before you order? Use the fit-check form above.
0810-600000 0810600000 CMS-1-V256-0.2-1 dynasty spas circulation pump maelstrom circ pump 0810-690000 0810690000 34-402-5315 gecko gecko aqua-flo maelstrom cms-1 circulation pump – 0.2 hp, 230v, 1-1/2″, 96″ cord
